1.9100 UV-Vis Spectrophotometer

The Palintest 9100 UV-Vis Spectrophotometer provides the full power of spectroscopic analysis with the convenience of the Palintest range of prepared tablet and liquid reagents. Designed to operate in stand-alone mode or controlled via dedicated software, the Palintest 9100 UV-Vis Spectrophotometer delivers superior technical performance within a compact footprint. Supplied complete with all required accessories, the spectrophotometer is operating and reporting accurate and reliable data within minutes. The Palintest reagent calibration data is automatically loaded either via the software or the program card/PCMA slot. Every Palintest 9100 UV-Vis Spectrophotometer is delivered with a full validation ensuring compliance with local standards for GLP. Technical support and training are available either directly from Palintest Ltd or our international network of dedicated distributors.

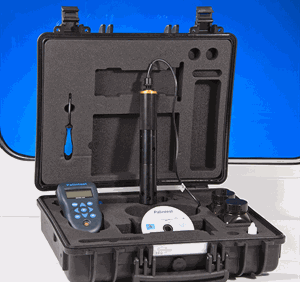

2.Macro 900 WQS

The Macro 900 Water Quality System is designed for the professional water scientist and provides monitoring for a wide range of key parameters in a comprehensive field kit. The Macro 900 meter is waterproof, simple to use and includes barometric pressure monitoring and GPS location detection. The data storage holds 1000 full sets of results and is downloaded via USB into the provided MacroLink software. Two Macro Accessory Probes (MAPs) are available to provide the monitoring; the MAP 2000 includes sensors/probes for pH, Oxidation Reduction Potential (ORP), Dissolved Oxygen (optical method), Conductivity (EC), Total Dissolved Solids (TDS), Resistivity, Salinity and Seawater Specific Gravity (SSG). The MAP 2100 adds depth measurement to the range of parameters on offer, either standard or differential. Both robust probes can be further enhanced using the range of optional ion selective electrodes (ISE) and optical probes: ISE – ammonia/ammonium (NH3/NH4), nitrate (NO3), calcium (Ca), chloride (Cl), fluoride (F) Optical probes – turbidity (ISO 7027 method), Chlorophyll, Blue Green Algae (Phycocyanin, fresh water), Blue Green Algae (Phycoerythrin, marine water), Rhodamine WT dye, Fluorescein dye, Refined Oils (Hydrocarbons).

3. Compact Turbimeter

Turbidity and Total Suspended Solids (TSS) are two of the most important indicator parameters for drinking water quality, natural/surface water management and wastewater treatment. The Compact Turbimeter uses unique QuadoptiX™ technology to provide:
• Maximum reliability and accuracy in the field
• Variety of operating/reading modes including Total Suspended Solids
• Full data log including time, date, Operator ID, Sample ID and calibration record for GLP compliance.
Operating according to the ISO 7027 standard, the Compact Turbimeter is ideal for the following applications:
Drinking Water - with a high sensitivity and high resolution of 0.01 NTU in the 0 – 1 NTU range, the Compact Turbimeter provides superb validation of drinking water quality and provides an essential tool for process control and management of drinking water production. Natural/Surface Waters - with a wide dynamic range from 0 – 1050 NTU the Compact Turbimeter provides robust and reliable measurement of surface water turbidity and suspended solids for environmental studies. Wastewater – utilising compensated turbidity measurement to give maximum resolution in wastewater and true ISO 7027 compliance, the Compact Turbimeter offers a Total Suspended Solids calibration option and continuous measurement mode for settling samples. Available as a hard case portable kit and supported by SDVB calibration standards, the Compact Turbimeter guarantees ergonomic and accurate field measurement for turbidity and Total Suspended Solids.

4. Photometer 7100

The New Photometer 7100 is fully integrated with the Palintest system of water analysis. It offers a great value instrumental analysis for an extensive range of water tests. The photometer 7100 accurately assesses the colour formed in the test sample and displays the readings directly in concentration units on its large LCD screen – no more inaccurate results due to variation in operator eyesight or lighting conditions. Not only does the 7100 have the whole range of Palintest tests available, but is highly portable, and rugged in design. Its full IP67 rating means it is fully waterproof and ideal for on-site testing in any application. The unique adaptive cell holder automatically adjusts to the tube size, and accommodates any size vial with no adapter needed. The instrument interface comes with 5 languages built in, and a large easy to read backlit display with easy to navigate menu. The Photometer 7100 is part of the successful and versatile Palintest water test system. It is supplied in a carrying case designed to carry the instrument, and your choice of reagents to provide a complete all-in-one on-site analysis kit.

5. Photometer 7500

The Palintest Photometer 7500 takes portable water testing to new heights. The smooth good looks cover a solidly engineered instrument with a high specification and high performance. Built around the Palintest range of water test reagents, the Photometer 7500 has automatic wavelength selection for each of its pre-programmed methods. Smart, rugged and easy to use, the 7500 is the ideal field instrument for engineers. § Fully waterproof with IP67 rating § Rugged, portable design with no moving parts § Automatic method set up for each parameter § USB port for easy computer interface § 500 test results stored on-board § Large backlit screen. Select the method from a list or use the direct entry menu. There are up to 30 user definable test methods, allowing full flexibility in a range of applications. The unique adaptive cell holder automatically adjusts to any round tube size, allowing easy analysis of a range of samples without needing adaptors. The software remembers your most recent tests, making it even quicker to use the next time around. Up to 500 tests results are held in the on-board memory, with a full audit trail of time, date and results in chosen units. Once back at base, the test results are effortlessly transferred to a PC by plugging into the USB port and using the drag and drop file transfer utility. In the same way, software updates that arrive by e-mail, or downloaded from the internet, can be just 'dropped' into the 7500. The unit runs on standard 'AA' batteries, or can be powered through the USB port from the computer or via its own standalone adapter. The software interface is in five languages (English, French, Spanish, German and Italian), and the easy to navigate menus are great for the engineer in a hurry. The Palintest Photometer 7500 is available in two kits, each complete with a carry case and room to store the required reagents.

6. Photometer 8000

The Palintest Photometer 8000 sets a new standard for water quality testing and ease of operation. It is designed to provide accurate and fast analysis for even the busiest test labs. Covering the full range of tests for clean and wastewater, it is compatible with all Palintest tablet and liquid photometer tests. With no moving parts, all measurements are made instantly, providing a very fast sample throughput. Compatible Palintest Tubetests reagent tubes are coded to provide all the instrument needs for wavelength range and calibration set-up and analysis. The instrument recognizes the tube method and measurement range and automatically sets up for a measurement. The user simply pushes in the tube and the instrument does the rest! The unique multi-size cell holder adjusts automatically to all reagent tubes from 12 mm – 20 mm diameter with no inserts or adaptors required, again speeding up analysis, and making the unit very convenient for the routine analysis of large numbers of samples since no manual intervention is required to change ranges or tube sizes. The cell holder is fully jam- and trap-resistant to allow fast and secure tube swapping. With an innovative permanent dual light source, the correct wavelength is automatically selected. A high efficiency light-focusing system provides a very high level of light throughput to the cells. The high intensity sources are up to 10 times brighter than the conventional optics found in other instruments and the optical system eliminates stray light effects, allowing the instrument to be used at maximum precision. To find more details on instrument accessories to go with the Photometer 8000 or to download an MSDS just click below.

7. Ammonia Meter

The new Palintest Ammonia Meter is a precision dual range Photometer for measuring Ammonia concentration in water. The single parameter meter is used in conjunction with the Tubetests Nessler reagent. The system provides a quick and simple but accurate way to monitor ammonia levels. Features
• Tests for Ammonia 0.06 - 15 mg/l, N, 0.5 - 50 mg/l N, 1 - 100 mg/l N
• Robust, Waterproof, IP 67 Rating
• Available in hard or soft carry case
• Easy to use (4 intuitive buttons)
• Ideal for routine water monitoring

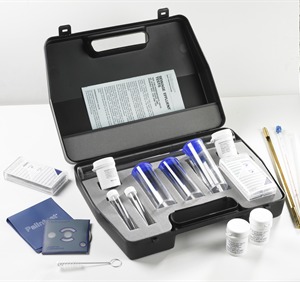

8. Sewage Effluent Kit

The Palintest Sewage Effluent kit provides a simple means of checking the quality of sewage effluents. It is used extensively for control testing at small sewage works. Based on simplified methods of sewage effluent testing, the kit contains tests for the essential quality control checks required for the day-to-day operation of sewage effluent treatment plants. Increasing attention is being paid to the quality of sewage effluents. This is coupled with the imposition of more stringent quality standards. It is important that the condition of sewage effluent discharges be checked to ensure they conform to consent limits. Similarly, the importance of regular testing by sewage works operators as a check on the efficiency of the works is widely recognised. Palintest Sewage Effluent tests have been developed to meet this need. Each of the tests is performed simply without the use of complicated equipment and are suitable without formal training in water testing and analysis. Palintest Sewage Effluent tests are based on those recommended by the Department of the Environment and the Water Research Centre, and accord generally with the methods laid down in "Analysis of Raw, Potable and Waste Waters", published by 'The Stationery Office'.

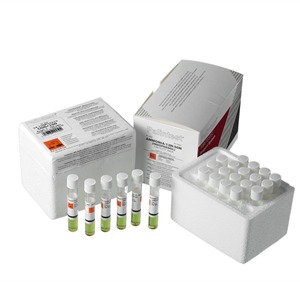

9. COD Tubetests

Palintest Tubetests are integrated with the Palintest photometer system so as to provide a complete system for COD measurement. Palintest COD Tubetests are offered in four ranges: 150 mg/l, 400 mg/l, 1,000 mg/l, 2,000 mg/l and 20,000 mg/l. The reagent formulations are based on those specified in recognised international standard methods and meet the requirements of conformity testing against national and international standards. Four types are available, allowing the user to choose the most environmentally-friendly product for their application :- § The mercury-free formulation is recommended for general use § The formulation with mercuric sulphate (M) is provided for use in standard procedures which require the suppression of interference due to moderate levels of chloride § The high chloride formulation (2M) provides much higher levels of chloride suppression and is suitable for working with samples with very high chloride levels § The new M/C formulations with mercuric sulphate are specifically for use in non-Palintest instruments, and allow users of compatible instruments to take advantage of the price, quality, and service we offer, whilst using their existing instrumentation. The new product comes in three ranges: up to 150 mg/l, up to 1,500 mg/l and up to 15,000 mg/l.

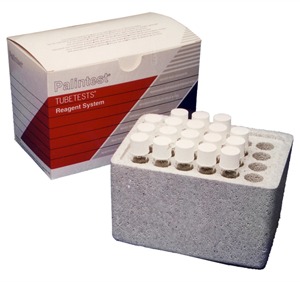

10. Tubetests for Ammonia, Nitrate and Phosphate Testing

The Tubetests range of tests covers the principal parameters needed for environmental control of waters, effluents and waste waters, and for the testing of agricultural run-off and leachate from landfill sites. In particular, they cover the testing requirements of the UK Urban Waste Water Directive and equivalent legislation in other countries. Ammonia (Ammonia Nitrogen) is one of the main constituents of effluent streams. The Tubetests reagent system offers a choice of test methods based on either the traditional Nessler method, or the most recent Indophenol procedure. For further classification of the nitrogen cycle, tests are available for both Nitrate (Nitrate Nitrogen) and Total Nitrogen. Phosphates promote eutrophication in natural waters. Testing for this parameter is therefore important for environmental control. Tubetests tests are offered for both Phosphate (Phosphate Phosphorus) and for Total Phosphorus.

11. Tubetests Metals

Due to increasing pressure from European legislation there is a growing requirement to carry out routine analysis on waste waters prior to discharge. The Palinest Tubetests Photometer and reagents offer a cost effective, professional system for water analysis, specially developed for environmental monitoring. Tests now include copper, nickel, iron, chromium and zinc, as well as the established COD, Ammonia, Nitrate and Phosphate tests. The reagent system consists of a pre-dispensed tube of mixed acids for hot acid digestion of effluent samples, prior to colorimetric analysis of the metals. Effluent samples may be highly coloured, at extreme pH, contain strongly bound complexed metals or thick precipitates of insoluble material. Acid digestion is used to destroy colour, dissolve precipitates and free metals from complexes, providing and much more reliable and effective test for effluent than conventional water test kits. This wide range of reagents can be used with any multi-parameter Palintest photometer and the Photometer 7000se analytical photometer. Palintest Tubetests Metals:
· Copper, Nickel, Iron, Zinc, Chromium effluent tests.
· Complete with all reagents.
· Measures free and complexed metals.
· Works with wide range of effluents.
