Laboratory Instruments > Photometers

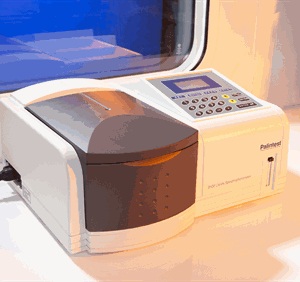

1.9100 UV-Vis Spectrophotometer

The Palintest 9100 UV-Vis Spectrophotometer provides the full power of spectroscopic analysis with the convenience of the Palintest range of prepared tablet and liquid reagents. Designed to operate in stand-alone mode or controlled via dedicated software, the Palintest 9100 UV-Vis Spectrophotometer delivers superior technical performance within a compact footprint. Supplied complete with all required accessories, the spectrophotometer is operating and reporting accurate and reliable data within minutes. The Palintest reagent calibration data is automatically loaded either via the software or the program card/PCMA slot. Every Palintest 9100 UV-Vis Spectrophotometer is delivered with a full validation ensuring compliance with local standards for GLP. Technical support and training are available either directly from Palintest Ltd or our international network of dedicated distributors.

2. Compact Turbimeter

Turbidity and Total Suspended Solids (TSS) are two of the most important indicator parameters for drinking water quality, natural/surface water management and wastewater treatment. The Compact Turbimeter uses unique QuadoptiX™ technology to provide:
• Maximum reliability and accuracy in the field
• Variety of operating/reading modes including Total Suspended Solids
• Full data log including time, date, Operator ID, Sample ID and calibration record for GLP compliance.
Operating according to the ISO 7027 standard, the Compact Turbimeter is ideal for the following applications:
Drinking Water - with a high sensitivity and high resolution of 0.01 NTU in the 0 – 1 NTU range, the Compact Turbimeter provides superb validation of drinking water quality and provides an essential tool for process control and management of drinking water production. Natural/Surface Waters - with a wide dynamic range from 0 – 1050 NTU the Compact Turbimeter provides robust and reliable measurement of surface water turbidity and suspended solids for environmental studies. Wastewater – utilising compensated turbidity measurement to give maximum resolution in wastewater and true ISO 7027 compliance, the Compact Turbimeter offers a Total Suspended Solids calibration option and continuous measurement mode for settling samples. Available as a hard case portable kit and supported by SDVB calibration standards, the Compact Turbimeter guarantees ergonomic and accurate field measurement for turbidity and Total Suspended Solids.

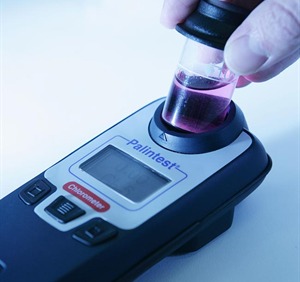

3. Chlorometer

The new Palintest Chlorometer offers a new dimension in chlorine testing. Used in conjunction with the DPD standard method developed by Palintest, it provides a level of simplicity and accuracy unrivalled in a portable hand-held instrument.
Features • Tests for Chlorine (0.01 - 5 mg/l)
• Robust, Waterproof, IP 67 Rating
• Available in hard or soft carry case
• Easy to use (4 intuitive buttons)
• Ideal for routine water monitoring
Instrument
• Narrow band wavelength filters, enhanced performance
• Language Free, Universal symbol set
• Large backlit Graphics Display Screen
• Longer cell pathlength, excellent resolution at low concentrations
The Palintest Chlorometer is ideal for every application. The instrument is equally suitable for bench use in water treatment plants and works laboratories, or for field use by sampling officers and water quality inspectors.

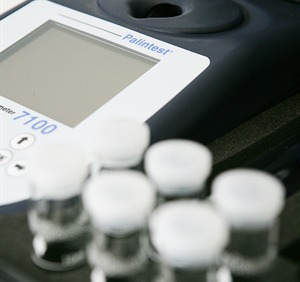

4. Photometer 7100

The New Photometer 7100 is fully integrated with the Palintest system of water analysis. It offers a great value instrumental analysis for an extensive range of water tests. The photometer 7100 accurately assesses the colour formed in the test sample and displays the readings directly in concentration units on its large LCD screen – no more inaccurate results due to variation in operator eyesight or lighting conditions. Not only does the 7100 have the whole range of Palintest tests available, but is highly portable, and rugged in design. Its full IP67 rating means it is fully waterproof and ideal for on-site testing in any application. The unique adaptive cell holder automatically adjusts to the tube size, and accommodates any size vial with no adapter needed. The instrument interface comes with 5 languages built in, and a large easy to read backlit display with easy to navigate menu. The Photometer 7100 is part of the successful and versatile Palintest water test system. It is supplied in a carrying case designed to carry the instrument, and your choice of reagents to provide a complete all-in-one on-site analysis kit.

5. Photometer 7500

The Palintest Photometer 7500 takes portable water testing to new heights. The smooth good looks cover a solidly engineered instrument with a high specification and high performance. Built around the Palintest range of water test reagents, the Photometer 7500 has automatic wavelength selection for each of its pre-programmed methods. Smart, rugged and easy to use, the 7500 is the ideal field instrument for engineers. § Fully waterproof with IP67 rating § Rugged, portable design with no moving parts § Automatic method set up for each parameter § USB port for easy computer interface § 500 test results stored on-board § Large backlit screen. Select the method from a list or use the direct entry menu. There are up to 30 user definable test methods, allowing full flexibility in a range of applications. The unique adaptive cell holder automatically adjusts to any round tube size, allowing easy analysis of a range of samples without needing adaptors. The software remembers your most recent tests, making it even quicker to use the next time around. Up to 500 tests results are held in the on-board memory, with a full audit trail of time, date and results in chosen units. Once back at base, the test results are effortlessly transferred to a PC by plugging into the USB port and using the drag and drop file transfer utility. In the same way, software updates that arrive by e-mail, or downloaded from the internet, can be just 'dropped' into the 7500. The unit runs on standard 'AA' batteries, or can be powered through the USB port from the computer or via its own standalone adapter. The software interface is in five languages (English, French, Spanish, German and Italian), and the easy to navigate menus are great for the engineer in a hurry. The Palintest Photometer 7500 is available in two kits, each complete with a carry case and room to store the required reagents.

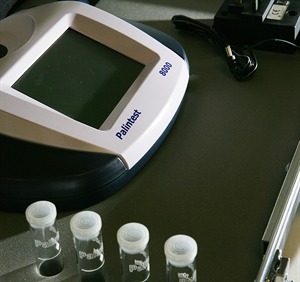

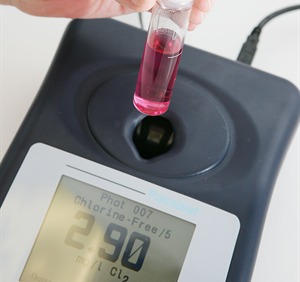

6. Photometer 8000

The Palintest Photometer 8000 sets a new standard for water quality testing and ease of operation. It is designed to provide accurate and fast analysis for even the busiest test labs. Covering the full range of tests for clean and wastewater, it is compatible with all Palintest tablet and liquid photometer tests. With no moving parts, all measurements are made instantly, providing a very fast sample throughput. Compatible Palintest Tubetests reagent tubes are coded to provide all the instrument needs for wavelength range and calibration set-up and analysis. The instrument recognizes the tube method and measurement range and automatically sets up for a measurement. The user simply pushes in the tube and the instrument does the rest! The unique multi-size cell holder adjusts automatically to all reagent tubes from 12 mm – 20 mm diameter with no inserts or adaptors required, again speeding up analysis, and making the unit very convenient for the routine analysis of large numbers of samples since no manual intervention is required to change ranges or tube sizes. The cell holder is fully jam- and trap-resistant to allow fast and secure tube swapping. With an innovative permanent dual light source, the correct wavelength is automatically selected. A high efficiency light-focusing system provides a very high level of light throughput to the cells. The high intensity sources are up to 10 times brighter than the conventional optics found in other instruments and the optical system eliminates stray light effects, allowing the instrument to be used at maximum precision. To find more details on instrument accessories to go with the Photometer 8000 or to download an MSDS just click below.

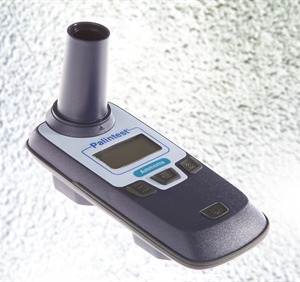

7. Ammonia Meter

The new Palintest Ammonia Meter is a precision dual range Photometer for measuring Ammonia concentration in water. The single parameter meter is used in conjunction with the Tubetests Nessler reagent. The system provides a quick and simple but accurate way to monitor ammonia levels. Features
• Tests for Ammonia 0.06 - 15 mg/l, N, 0.5 - 50 mg/l N, 1 - 100 mg/l N
• Robust, Waterproof, IP 67 Rating
• Available in hard or soft carry case
• Easy to use (4 intuitive buttons)
• Ideal for routine water monitoring

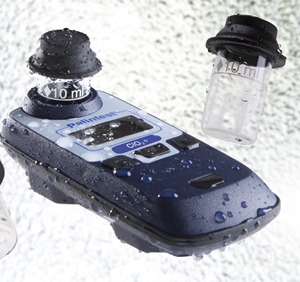

8. ClO2+

The new Palintest ClO2+ instrument provides a simple means of measuring chlorine and chlorine dioxide residuals. Used in conjunction with the Palintest DPD method, it provides a level of simplicity and accuracy unrivalled in a portable, hand-held instrument.
Features • Tests for Chlorine (0.01 - 5 mg/l) and Chlorine Dioxide (0.02 - 10 mg/l)
• Robust, Waterproof, IP 67 Rating
• Available in hard or soft carry case
• Easy to use (4 intuitive buttons)
• Ideal for routine water monitoring
The new Palintest ClO2+ is ideal for every application. The instrument is equally suitable for bench or field use. For maximum portability, the ClO2+ is supplied in a soft carrying pouch. The option of a hard carry case is also available as an added convenience. It is complete with test tubes, DPD tablets and full operating instructions.

9. Ozone Meter

The new Palintest Ozone Meter provides a simple means of measuring ozone residuals up to a level of 3.0 mg/l. Used in conjunction with the Palintest DPD method, it provides a level of simplicity and accuracy unrivalled in a portable, hand-held instrument.
Features • Tests for Ozone (0.01 - 3 mg/l)
• Robust, Waterproof, IP 67 Rating
• Available in hard or soft carry case
• Easy to use (4 intuitive buttons)
• Ideal for routine water monitoring
The new Palintest Ozone Meter is ideal for every application. The instrument is equally suitable for bench or field use. For maximum portability, the Ozone Meter is supplied in a soft carrying pouch. The option of a hard carry case is also available as an added convenience. It is complete with test tubes, DPD tablets and full operating instructions.

10. Bromometer - Duo

The Palintest Bromometer Duo provides a convenient, accurate and easy to use photometer capable of providing on-the-spot confirmation of disinfectant residual protection levels.
In the field of water management and control, the accurate determination of disinfectant residuals is of prime importance. This is particularly significant for servicing of cooling towers and other bodies of water where contamination could be dangerous to the public.
The Palintest Bromometer Duo offers water service engineers a new flexibility in residual testing. Used in conjunction with the established Palintest DPD Chlorine and Bromine test methods, it provides a simple means of accurately determining Chlorine or Bromine. Using genuine Palintest reagents, it gives a fast check on disinfection and sterilisation levels in tanks and pipework.
The Palintest Bromometer Duo is ideal for many applications. The instrument is equally suitable for bench use in water treatment plants and works laboratories, or for field use by sampling engineers and contractors.
The Bromometer Duo is supplied in a soft carrying case with belt loop for maximum portability, complete with test tubes, reagents and full operating instructions.
Using the Bromometer Duo could not be simpler – just place the sample tube in the meter and press the ON key. The automatic blank recognition and zero setting makes taking measurements simplicity itself, and the blank reading can be held in memory for testing multiple samples.

11. Molybdate Duo Meter

The Molybdate Duo Meter provides a single meter capable of measuring tracer levels of Molybdate as low as 0.10ppm, with a range of 0.0 to 20.0 ppm and a high range for measuring levels of 0 to 100 ppm as MoO4.
Formulations containing Sodium Molybdate are used as corrosion inhibitors in industrial water treatment. In particular, Molybdate finds application in cooling towers and in closed recirculating systems such as hot water heating and chilled water systems. Molybdates have replaced toxic corrosion inhibitors such as Chromates.
When using Molybdate treatment, it is necessary to control the Molybdate concentration within specified levels depending on the application involved. Molybdates are used extensively for corrosion inhibition and also as a tracer reagent in many boiler and cooling water products. Low levels of Molybdate are mixed in with the products for the determination of product levels in a system i.e. a 1.5 to 2.0 ppm level may indicate 100 ppm of product.
The Molybdate-Duo meter is suitable for bench use in laboratories or for field use by sampling engineers or contractors. The instrument is supplied in a soft carry pouch with a belt loop for maximum portability, or with an optional hard carry case for added convenience. The kit comes complete with test tubes, reagents and full operating instructions. It is also supplied with a test certificate confirming conformance to calibration standards. Certified check standards are available as an optional extra.

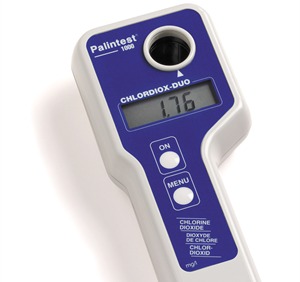

12. Chlordiox Duo Meter

The Palintest Chlordiox-Duo Dual Range meter provides a fast and easy way to get accurate measurements of ClO2 at levels from 0.1 mg/l to 20 mg/l without all the problems of conventional methods.
Although Chlorine Dioxide has become more and more important as a biocide and sterilisation chemical in recent years, the methods available to monitor CIO2 levels in water have been slow, inaccurate, or have needed a skilled analyst to provide correct answers.
Now the Palintest Chlordiox-Duo Dual Range meter provides a fast and easy way to get accurate measurements of CIO2 at levels from 0.1 mg/l to 20 mg/l without all the problems of conventional methods. Based on well proven published chemical methods, the new Chlorine Dioxide test is specific and sensitive. There is no interference from Chlorine, Chlorite, Hydrogen Peroxide, Manganese or other oxidizing species. This makes testing simple and definite – the Chlordiox-Duo is direct reading with no calculations to perform, it reads out directly in mg/l CIO2. A single test can be completed in just 1 minute.
The instrument is equally suitable for bench use in laboratories or for field use by sampling engineers or contractors. The Chlordiox-Duo is supplied in a soft carry pouch with a belt loop for maximum portability, or with an optional hard carry case for added convenience. The kit comes complete with test tubes, reagents and full operating instructions.

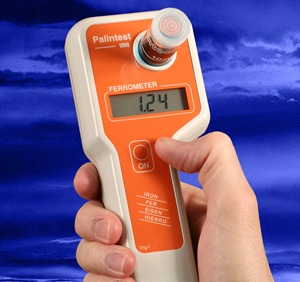

13. Ferrometer Kit

The Palintest Ferrometer 1000 provides an easy to use but accurate instrument for monitoring iron at any point in a process, or in the field. Part of the Palintest 1000 range of instruments, the Ferrometer combines high build quality with a proven chemistry to give total iron content of water.
Iron occurs widely in nature and is found in many natural and treated waters. In domestic and industrial water supplies it can cause staining of clothes, plumbing fittings and swimming pool surfaces. The formation of insoluble iron deposits can be troublesome in many industrial applications. Iron salts can come from corrosion in plant and equipment, and from the industrial processes themselves. It is important therefore to monitor natural and drinking water, as well as process waters and effluents.
The Palintest Iron MR test uses the industry standard 1,10 phenanthroline test, and is capable of dissolving colloidal and particulate iron to give a true measure of the total iron content. The instrument is suitable for bench use in water treatment plants and labs, as well as for field use by sampling officers and inspectors, or by water quality engineers. For maximum portability the Ferrometer is supplied in a soft carry pouch with a belt loop. The option of a hard carry case is also available. The kit comes complete with test tubes, Iron MR test tablets and full operating instructions.
